Aplikasi
l 5.1/5.5/5.8GHz WLAN/WiMax
l Jarak Jauh Arah Aplikasi
l Point to Point Systems
l Wayarles Bridges

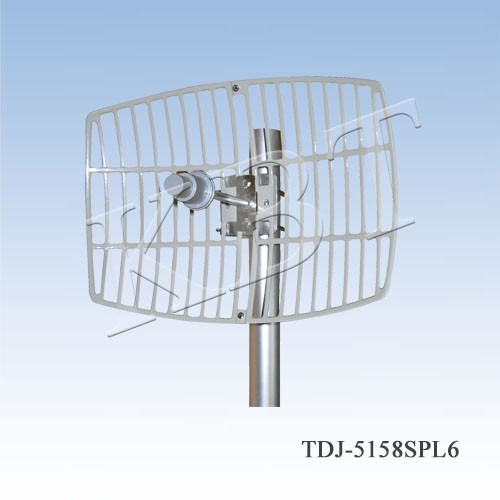

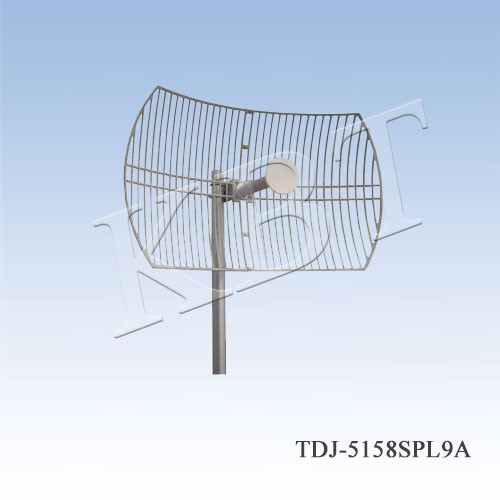

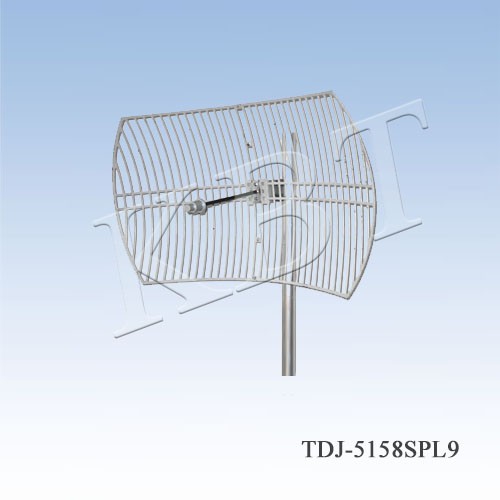

Model | TDJ-5158SPL4 | TDJ-5158SPL6 | TDJ-5158SPL9 | TDJ-5158SPL9A |
Freq.Julat-MHz | 5150 to 5850 | 5150～5850 | 5150 to 5850 | 5150～5850 |
Lebar jalur-MHz | 700 | 700 | 700 | 700 |
Gain-dBi | 23.5 | 26.5 | 29.5 | 30 |
Lebar pancaran-° | E:12 H:9 | E:9 H:6 | E% 3a6 H:4 | E% 3a5 H:3.5 |
F/B Nisbah-dB | ≥20 | ≥25 | ≥25 | ≥25 |
VSWR | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
Impedans-Ω | 50 | 50 | 50 | 50 |
Polarisasi | Menegak or Mendatar | Menegak or Mendatar | Menegak or Mendatar | Menegak or Mendatar |
Max.Power-W | 100 | 100 | 100 | 100 |
Penyambung | N perempuan | N Perempuan | N Perempuan | N Perempuan |
Dimensi-m | 0.3×0.4 | 0.4×0.6 | 0.6×0.9 | 0.6×0.9 |
Berat-Kg | 1.4 | 2.4 | 4.5 | 5 |
Tiang Diameter-mm | φ40-50 | φ40-50 | φ40-50 | φ40-50 |
