Model | TDJ-0727BKS-M | ||
Julat Frekuensi-MHz | 698~806 | 806~960 | 1710~2700 |
Gain-dBi | 3(maks) | 6±1 | 8±1 |
Lebar pancaran-° | E:65±10 T:80±15 | E:50±10 T:60±15 | |
F/B-dB (Nilai purata) | 6 | 15 | |
VSWR | ≤2.0 | ||
IM3-dBm (2×33 dBm) | -107 | ||
Impedans-Ω | 50 | ||
Polarisasi | Menegak | ||
Kuasa Maks.-W | 20 | ||
Penyambung | N perempuan atau disesuaikan | ||
Dimensi-mm | (165×146×48）±1.5 | ||
Berat-Kg | 0.6±0.1 | ||

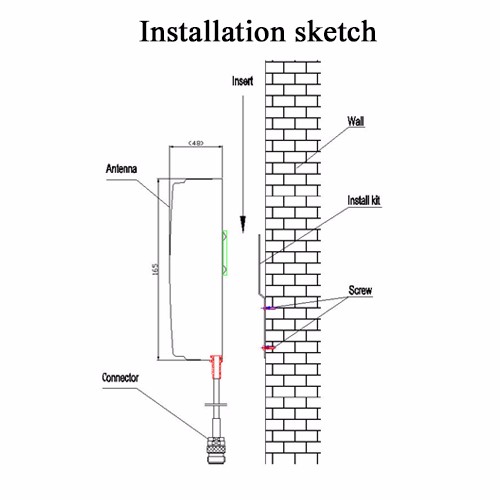

Pemasangan | Pemasangan dinding | ||
