Model | KBT65DP171818-0820AE-LI | |||
Kekerapan range(MHz) | 880-960 | 1710-1880 | 1850-1990 | 1920-2170 |
Polarisasi | ±45° | |||
Keuntungan(dBi) | 16.5 | 16.8 | 17.3 | 17.2 |
Elektrik downtilt(°) | 0-10 | 0-10 | ||
HBW(°) | 65 | 68 | 65 | 62 |
VBW(°) | 9.5 | 8 | 7.5 | 7 |
Pertama upper side lobe suppression(dB)
| 15 | |||
Depan to back ratio(dB)
| ≥25 | |||
Cross polar diskriminasi(dB) | ≥15（±60°≥8） | |||
Pengasingan(dB) | ≥28 | |||
Impedans(Ω) | 50 | |||
VSWR | ≤1.5 | |||
Intermodulasi IM3(dBc) | ≤-150(2*43dBm) | |||
Maksimum power(W) | 300 | 250 | ||
tanah | DC Grounding | |||

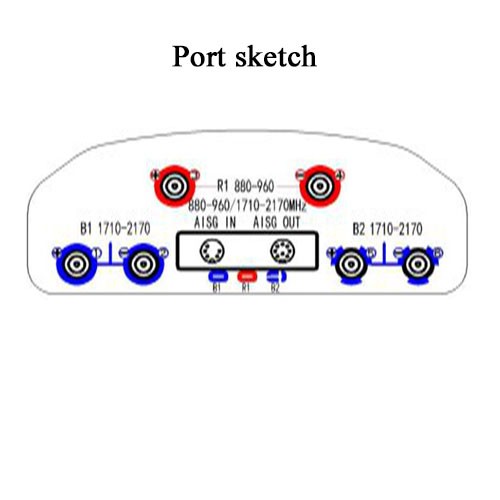

Penyambung | 6*7/16DIN Perempuan |
Penyambung posisi | Bawah |
Antena size(mm) | 1760*385*138 |
Pembungkusan size(mm) | 1980*450*250 |
Berat (Kg) | 17.5 |
Braket Berat(Kg) | 4 |
Radome bahan and warna | UPVC/Kelabu |
Mekanikal tilt(°) | 0-12 |
Mengendalikan temperature(℃) | -40-60 |
Dinilai wind velocity(m/s) | 60 |
Sesuai pole diameter(mm) | Φ50-Φ115 |
Memasang kit | JM-900DZA |
Pelarasan kecondongan bawah elektrik | Bersepadu RET |
RCU model | KRCU20D |
Nota:The height includes the caps,the width and thickness do;not +do;not bthe% 26nbsp;caps.
